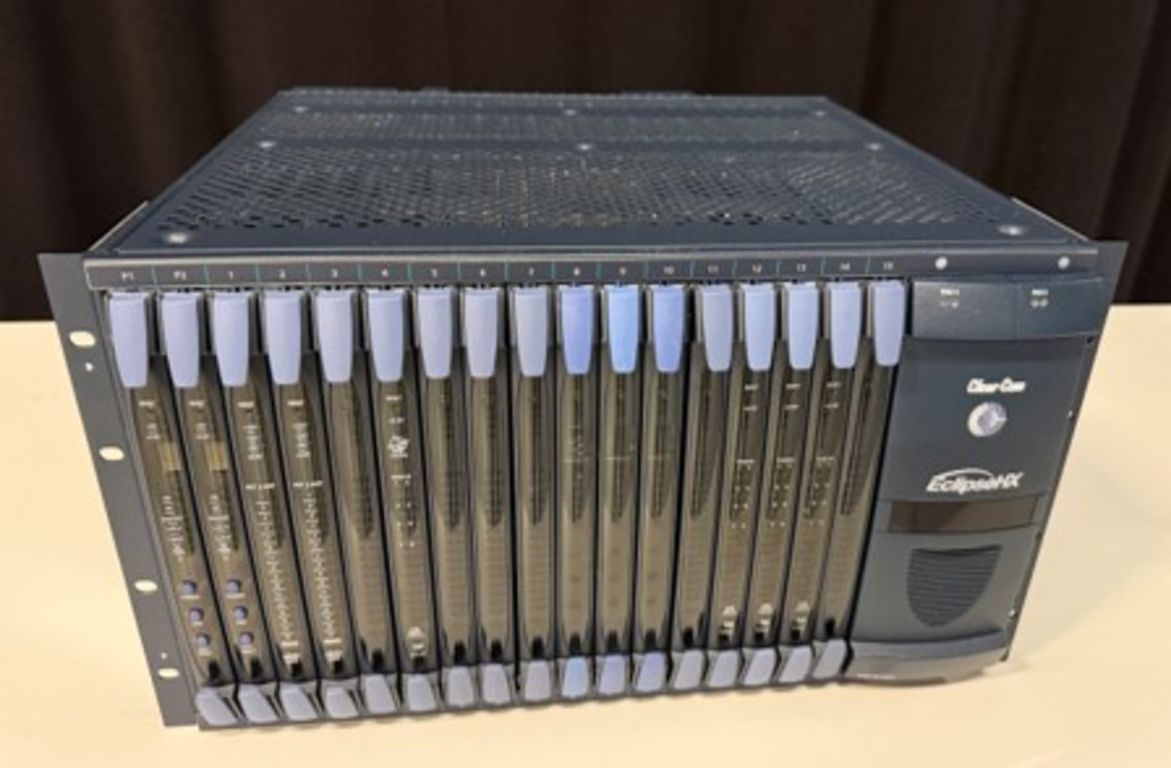

Used Clearcom Eclipse HX Mainframe
enlarge
Used Clearcom Eclipse Mainframe
Firmware v14.1 Rev A.
Included cards:
2x MVX-A16-HX
1x IVC-32-HX
3x E-QUE-HX – not mandatory (needed for FreeSpeak inclusion)
3x Spare AC/DC Converters included
Also available: V12, V24 and Desktop Panels
Possible upgrade to make it a state of the art system:
2x New Eclipse Omega PSU, product code 720379Z
1x EHX-UPGRADE firmware update
Upgrade frame and both CPU cards to EHX Version 15
Possible Hardware Upgrades:
IVC-32-HX - E-IPA-HX upgrade: The IVC-32-HX is End of Life. The E-IPA-HX supports matrix panels via IVC or AES67, as well as Agent-IC, Station-IC, SIP clients and AoIP streams. It also enables remote connections via LAN, WAN or the internet.
E-QUE-HX - E-IPA-HX upgrade: The E-QUE-HX is End of Life. The E-IPA-HX supports FreeSpeak IP transceivers as well as existing E1 transceivers.
+
E-IPA-HX capacity: The card initially provides 16 licensed IP ports. Additional licences can unlock further ports on the same card, increasing its capacity to 32, 48 or a maximum of 64 ports
Built in 2012
Price on request.
For more details download PDF below.
