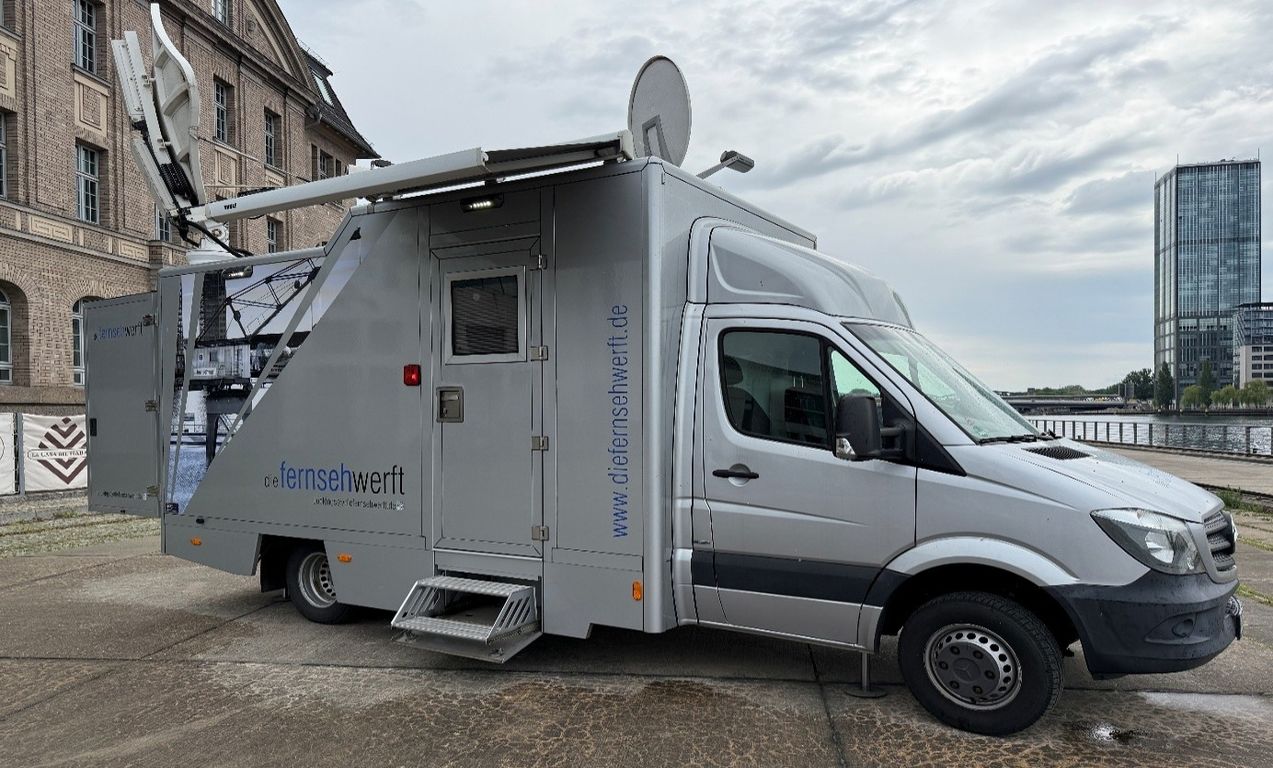

Used HD SNG -full redundant - Mercedes Sprinter 516 CDI prepared for 4 CCU controlled Camera chains

enlarge

This SNG is  in excellent condition and prepared on a high technical level  ready for upgrade to 4K
The SNG can do 2+1

The SNG was built in 2017
Emission Norm EURO 6
Dimensions (L x W x H): 7,00 x 2,50 x 3,60 m
Maximum weight: 5,5 Tons
Air Conditioning
Navigation System
10 KVA Panda on board Power Generator
External Power Supply via CEE Connector, 16 A
UPS System Protect D-3000
Electrical controlled jacks on front and rear side

Room capacity -production gallery:
3 people in the front
1x extra folding table behind the main table ( for EVS, Graphic, Journalist)

Satellite equipment:
1.5 m ERA-Antenna
2 x 400-Watt ND Satcom HPAs-12.75 – 14.50 GHz
EIRP max. 71 dBW

  2 x Upconverter-13.75 – 14.50 GHz,
2 x HD Encoder/Modulator ERICSSON VOYAGER II, MPEG2, MPEG4,
RAS and BISS-Encryption, QPSK, 8PSK, DVB-S2
2 x IRD ERICSSON RX8200, MPEG 2, MPEG 4, HD/SD
1x Adtec R-60
Spectrum Analyzer JFR2399
Digital Astra TVRO, 10.70 – 12.75 GHz

Video-Audio equipment:

All video cabling is prepared  in 12G
Video Switcher ATEM 2 M/E Production Studio 4K
SDI Router Blackmagic Smarthub 40x40, 12G -4K
4x SDI Embedder, 4x SDI Deembedder, 1x Cross-Converter, TC-Generator
Recorder Blackmagic HyperDeck Studio / Studio Mini

Audio Mixer Soundcraft Si Impact, 32 Inputs, 16 Outputs
Audio Stagebox Soundcraft Mini 16i, 16 Inputs, 8 Outputs (option)
Riedel Riface – 1x Simplex + 1x Duplex
2x Motorola Walkie Talkies
 Riedel Performer Intercom  -32x32 Mainframe
Dolby E Decoding
n-1 and intercom via GSM-Hybrid, Telephone Hybrid
ISDN Codec Mayah 3001

For more details download the .pdf below

Price on request:
Excl. VAT
Excl. shipping & insurance costs
Excl. custom fees
